1. How Residential Energy Storage Systems Work: A Comprehensive Overview
1. Introduction to Residential Energy Storage Systems
Imagine a home that can store its own power, harnessing the sun's energy during the day and preserving it for use at night. This is the reality promised by residential energy storage systems (RESS). These systems capture and store electricity, predominantly from solar panels, enabling its use when sunlight is scarce. But why is this significant?
Grid - supplied electricity can be costly and unreliable. Power outages occur, and energy prices fluctuate. A storage system empowers homeowners, allowing them to save money, utilize clean energy, and maintain power during grid failures.
How precisely do these systems operate? What components constitute them? What benefits can homeowners expect? And how do they fit into the future of energy?
This article aims to answer these questions. Step - by - step, we will explore the operation of residential energy storage systems, the underlying technology, and why they are becoming an essential part of modern homes. Ready to transform your home into its own power station? Let's delve in.
2. Core Components of Residential Energy Storage Systems
So, what drives a residential energy storage system? What components collaborate to capture sunlight and convert it into usable power for your home? Let's break it down.
At the system's core is the battery, the energy reservoir. Most contemporary systems employ lithium - ion batteries due to their high energy - density, enabling them to store a substantial amount of power in a compact space. They charge rapidly and have a long lifespan. Inside these batteries, numerous cells are grouped into modules, which are then connected to form a battery rack. Think of it as a collection of energy - holding containers, ready to release power when required.
Next is the inverter. Solar panels and batteries generate direct current (DC) electricity, while your home requires alternating current (AC). The inverter's role is to convert DC to AC. Without it, your lights, fridge, and TV would remain non - functional. Some inverters are bi - directional, capable of converting AC back to DC for battery charging from the grid.
Then there's the Battery Management System (BMS). This small yet crucial component monitors the battery's health, keeping tabs on voltage, current, and temperature. The BMS prevents overcharging and deep discharging, safeguarding the battery and extending its life. Without an effective BMS, the battery could malfunction or even pose a danger.
Finally, the Energy Management System (EMS) serves as the system's brain. It determines when to charge or discharge the battery, balancing energy usage from solar panels, the battery, and the grid. The EMS ensures you maximize the use of stored energy. It can also respond to electricity prices or grid demands, helping you save money or support the broader power network.
These components work in harmony. During the day, solar panels send electricity to your home. If there's excess, the EMS directs it to the battery rack. The BMS ensures safe battery charging. When the sun sets or the grid fails, the battery releases power through the inverter to your home. The EMS manages this power flow, ensuring your essential devices remain operational.
In essence, the battery stores energy, the inverter converts it, the BMS protects it, and the EMS controls it. Together, they transform your home into a mini - power station.

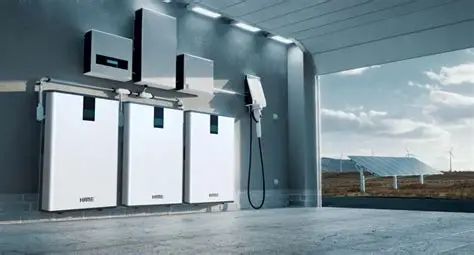

But what do these components look like and how do they connect? Picture solar panels on your roof sending DC power down to the battery rack, neatly placed in your garage or utility room. The inverter is nearby, wired into your home's electrical panel. The BMS is integrated into the battery modules, quietly monitoring each cell. The EMS runs software accessible via your phone or computer.
This setup is simple yet powerful, designed for reliability, safety, and efficiency. As technology advances, it is becoming more affordable and widespread.
Next, we'll explore how these components function together in real - life scenarios. How does your home use, store, and release energy? What operating modes does the system offer? Stay tuned.
3. How Residential Energy Storage Systems Work: Step - by - Step Process
So, how does a residential energy storage system actually function in your home? What occurs from dawn to dusk and beyond? Let's walk through the process.
Daytime: Capturing and Storing Energy
When the sun shines, your solar panels absorb its light and convert it into direct current (DC) electricity. This power flows into your home, powering appliances such as your fridge, lights, and TV. But what if the sun is particularly strong and your home doesn't require all the generated energy immediately?
This is where the storage system comes into play. The Energy Management System (EMS) detects the excess power and, instead of allowing it to go to waste, directs it to the battery rack. The Battery Management System (BMS) closely monitors the process, ensuring the batteries charge safely. The inverter stands ready to convert DC power to alternating current (AC) for your home's use.
This stored energy is like money in the bank. You save it during the day for use when needed.
Evening and Night: Using Stored Energy
As the sun sets, your solar panels stop producing electricity. Now, the battery takes over. It releases the stored energy, sending DC power to the inverter. The inverter converts it to AC power, which your home can use. Your lights remain illuminated, the fridge continues to run, and your devices operate smoothly.
The EMS manages this power flow, ensuring the battery doesn't drain too quickly or slowly. It balances your energy usage to make the most of every kilowatt - hour. If your battery runs low and you still need power, your home can draw electricity from the grid.
Different Modes for Different Needs
Residential energy storage systems don't operate on a single setting. They have various modes to suit your lifestyle and local energy regulations.
- Self - Consumption Mode: The system prioritizes using solar power first. Excess energy is used to charge the battery. At night, the battery powers your home, reducing your reliance on the grid.
- Time - of - Use (TOU) Mode: This mode capitalizes on electricity price fluctuations. The battery charges when rates are low, such as at night or midday, and discharges when prices peak, helping you save money.
- Backup Mode: When the grid fails, the system automatically switches to battery power. Critical appliances remain operational, providing peace of mind during blackouts.
Can You Add Batteries Later?
What if you already have solar panels but no battery? The good news is that you can add a storage system later. Many setups are designed to integrate seamlessly with existing solar arrays. This flexibility means you don't have to install everything at once; you can expand your system as your needs evolve.
What About Grid Interaction?
Your home is not isolated; it's connected to the larger power grid. During the day, if your solar panels generate more power than you can use or store, the excess can be fed back into the grid. Depending on local policies, this can earn you credits or payments.
At night or when your battery is low, your home draws power from the grid. The storage system helps reduce these draws, especially during peak hours, alleviating strain on the grid and lowering your bills.
Why Does This Matter?
Energy doesn't always align with our needs. The sun sets, clouds arrive, or the grid fails. A residential energy storage system bridges these gaps. It stores power when it's abundant and provides it when it's scarce.
It gives you control, saves you money, and keeps your home running smoothly.
In Summary
- Solar panels generate DC electricity during the day.
- Your home uses this power first.
- Excess energy charges the battery.
- At night or during outages, the battery supplies power.
- The inverter converts DC to AC for home use.
- The EMS manages energy flow, optimizing use and cost.
- The system can operate in different modes to suit your needs.
- It interacts with the grid for buying or selling power.
This cycle repeats daily, silently and efficiently. Your home becomes a small - scale power station, prepared for whatever comes next.
Next, we'll look at the types of batteries that make this possible and why lithium - ion dominates the market. Stay tuned.
4. Types of Batteries Used in Residential Energy Storage
What type of battery powers your home's energy storage system? This question is crucial. The battery is the heart of the system, storing the energy you save and releasing it when needed. However, not all batteries are created equal. Some have a longer lifespan, some can hold more power, and some are more cost - effective. Which one is right for you?
Lithium - Ion Batteries: The Popular Choice
Most modern systems rely on lithium - ion batteries. Why? They offer a high energy - density, packing a large amount of energy into a small space. They charge quickly and have a relatively long lifespan. Their high energy - density means they can store more power per kilogram compared to most other types. They also boast good efficiency, losing little energy during charging and discharging.
Lithium - ion batteries are lightweight and compact, making them suitable for homes where space is limited. Their lifespan typically ranges from 10 to 15 years, potentially longer with proper care. Additionally, their costs have been steadily decreasing in recent years, making them more accessible.
However, they're not without drawbacks. Lithium - ion batteries require careful management. Overcharging or deep discharging can damage them. They need a Battery Management System (BMS) to ensure their safety. And although rare, there are safety concerns such as overheating or fire risk if the battery is damaged or poorly maintained.
Lead - Acid Batteries: The Old Guard
Before lithium - ion batteries became popular, lead - acid batteries were commonly used. You may be familiar with them from car batteries. They are more affordable upfront but are heavier and bulkier. Their energy - density is low, meaning they require more space to store the same amount of power.
Lead - acid batteries have a shorter lifespan, usually 3 to 5 years. They demand regular maintenance, such as checking water levels. Their efficiency is also lower, losing more energy during charge and discharge cycles.
For some homeowners on a tight budget or with basic backup needs, lead - acid batteries remain an option. However, for most modern residential energy storage applications, they are being phased out.
Flow Batteries: The Long - Distance Runner
Flow batteries store energy in liquid electrolytes held in tanks. This design allows for easy scalability—simply add more tanks for increased storage capacity. They have long lifespans and can endure thousands of charge - discharge cycles without significant degradation.
They are safer than lithium - ion batteries as they don't carry the same fire risk. However, flow batteries are larger and more expensive. Their efficiency is lower, resulting in more energy loss during storage and retrieval.
Flow batteries are better suited for larger or commercial installations rather than typical homes. But as technology improves, they may become more common in residential settings.
Sodium - Ion Batteries: A Rising Star
A newer alternative is sodium - ion batteries. They aim to offer performance similar to lithium - ion batteries but use more abundant and cheaper materials. This could potentially make them a cost - effective and sustainable option in the future.
Sodium - ion batteries are still in the development phase. Their energy - density and lifespan are improving, but they are not yet widely available for home use.
Why Does Battery Choice Matter?
Your battery choice impacts several factors:
- Capacity: Determines how much energy you can store.
- Lifespan: Indicates how long the battery will last before replacement.
- Safety: Reflects the risk of fire or failure.
- Cost: Includes the initial investment and maintenance expenses.
- Space: Relates to the physical size and weight of the battery.
Lithium - ion batteries currently offer the best balance for most homeowners. They combine good capacity, long life, safety, and falling costs. However, your requirements may vary. A small home with basic backup needs might opt for lead - acid batteries. A large home or one looking for a future - proof system might consider flow batteries.
