AGV Power Battery Series-RPPB-APM1 - Image 1

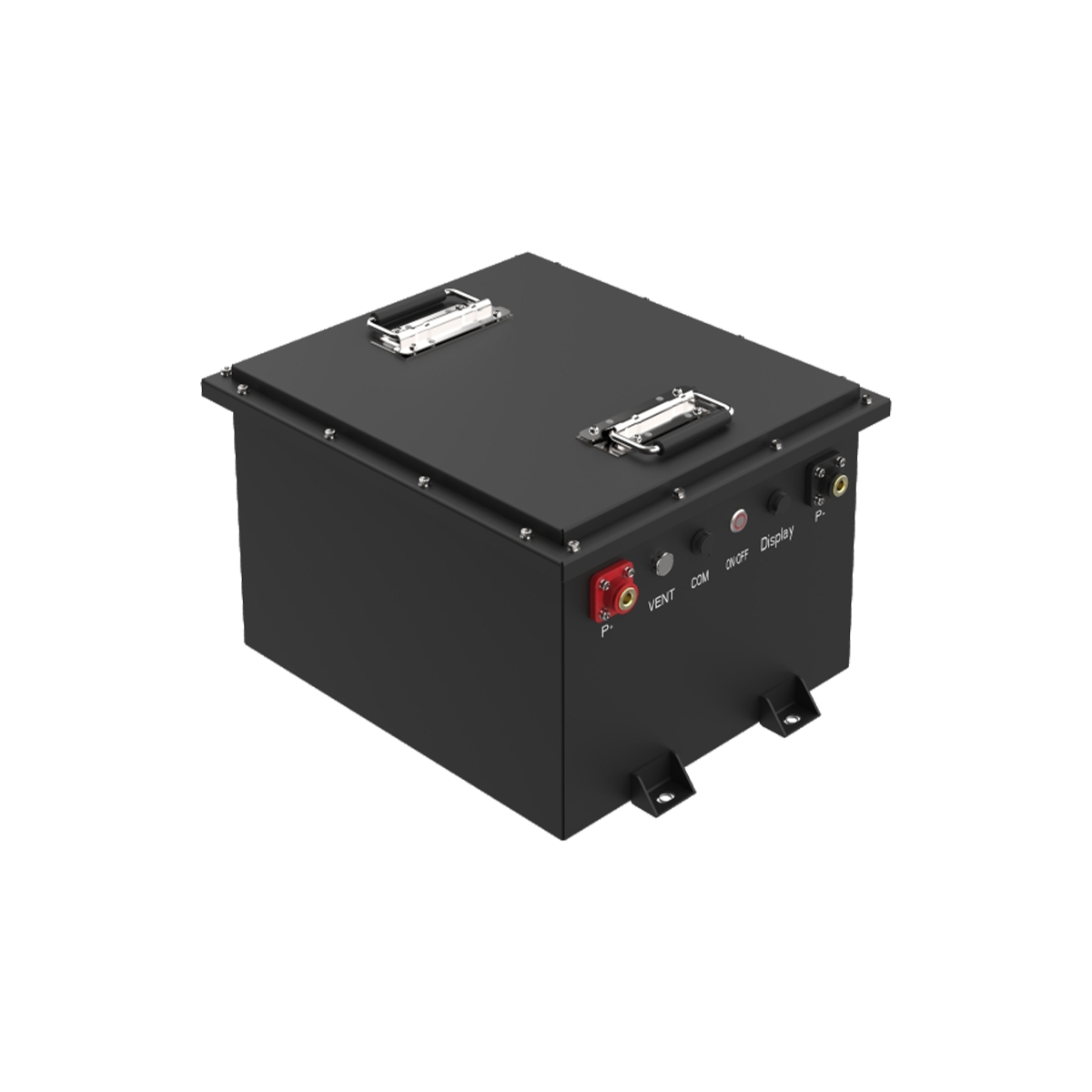

    AGV Power Battery Series-RPPB-APM1

    Technical Specifications
    • Electric Power: Both are typically powered by batteries, making them eco-friendly.
    • Automated/Manual Operation: Golf carts can be driven manually or with some automated features;
      AGVs are fully automated.
    • Compact Design: Both are designed to be compact & maneuverable in tight spaces.
    • Navigation: AGVs follow predetermined paths using sensors, while golf carts often use manual steering but may include GPS for navigation.
    • Utility: Both are used for transportation, with golf carts primarily for leisure & AGVs for industrial tasks.
    SKU: NC-TR-3K36-L-1-UL
    Enquiry Now
    Whatsapp

    TECH & SPECS

    Rated Voltage

    36V

    51.2V

    Rated Capacity

    105Ah

    105Ah

    Rated Energy

    3.78kWh

    5.38kWh

    Output Voltage Range

    33.6V~43.2V

    44.8V~57.6V

    Charging Voltage

    41.4~43.2V

    44.8~57.6V

    Cut-off Voltage

    33.6V

    44.8V

    Max. Charging Current

    100A

    100A

    Recommended Charging Current

    25A

    25A

    Max.Discharging Current

    200A

    150A

    Efficiency

    >98%



    Dimension L*W*H ( mm )

    400*335*255

    375*310*285

    Weight (kg )

    ~36.5

    ~41.5

    Humidity

    5%~95% Relative humidity



    Charging Temperature

    -20°C~50°C

    Discharging Temperature

    -20°C~55°C

    Storage Temperature

    -10°C~30°C



    Cycle Life

    >3000 times (0.5C, @25°C, 80%DOD)



    Benefits

    • Life cycles
      >3500 cycles
    • Safety and sustainability
      reducing carbon footprint
    • Eliminate battery
      changes at each shift
    • Reduced costs &
      Savings on electricity bills
    • Fast charge &
      No “memory” effect
    • No hazardous fumes
      acid spills or watering
    • Remote troubleshooting &
      monitoring
    • Zero daily maintenance and
      no battery room required

    The right choice for more and more applications.

    • The 48 V 690 Ah battery has an excellent charging performance and high energy density.
    • F48690BD will only take a little charging time. Therefore, you can save a lot of time for workers.
    • Our lithium forklift battery is easier and more convenient to use and does not require maintenance to ensure its performance.
    • The cycle life of the 690 Ah forklift battery is up to 3500 times, contributing to cost savings.

    Comprehensive Safety

    Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.

    NACCI forklift charger supports communicating with the BMS of lithium batteries in real time, which significantly extends the charger lifespan.

    Intelligent Monitoring

    The intelligent display showcases current charging voltage, charging current, battery information, and set current in real time. It supports 12 language settings for easy reading and enables upgrading via USB.
