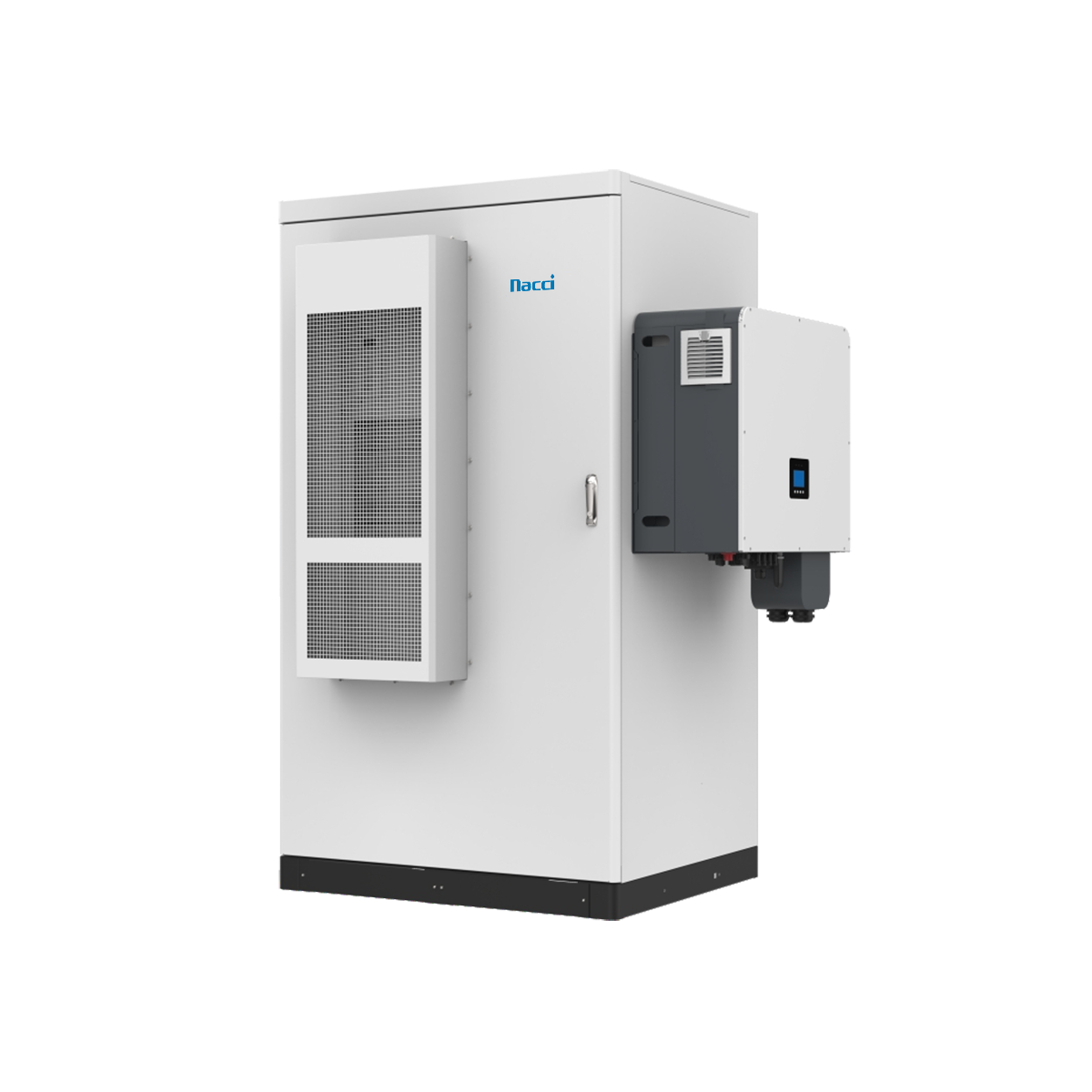

Nacci 192V50Ah Commercial Battery Storage Systems IP20 C&I Battery Storage
Nacci 192V50Ah Commercial Battery Storage Systems IP20 C&I Battery Storage
Back to products
C& IESS Series-RPCI-HVC5(RPT-ESS-01)
C& IESS Series-RPCI-HVC5(RPT-ESS-01)
C& IESS Series-RPCI-HVC1 - Image 1

    C& IESS Series-RPCI-HVC1

    Technical Specifications
    • Safety & Reliability
    • LiFeP04 battery with higher safety & longer lifetime
    • 1+1 redundant design
    • Simple & Friendly
    • Easy installation, pre-installed before delivery
    • Backup time with 2-5 hours
    • Cost-Effective & High Efficiency
    • 100% DOD, improve return on investment
    SKU: NC-CI-100K-L-R2-UL
    Enquiry Now
    Whatsapp

    TECH & SPECS

    Battery Parameters

    ARET

    Cell Chemistry

    LiFePO4

    Module Energy

    10.24 kWh

    Module Nominal Voltage

    51.2V

    Module Capacity

    200Ah

    Battery Module Qty

    10

    System Energy

    102.4kWh

    System Nominal Voltage

    512V

    Operating Voltage Range

    448V~576V

    Charge/Discharge Efficiency

    Max.0.5C

    Dimension(W*D*H)

    1200*1000*2150mm

    Weight

    1430KG

    Operating Temperature Range

    -25C ~ +50°C
    Cooling Method

    Air Conditioner

    Inverter Parameters

    DC – PV

    Max. PV Voltage

    1000V

    MPPT Range/Nominal

    180V~1000V

    Max. Input Current/String

    36A*2

    Qty.of MPPT

    		 4

    Max. Input Power/String

    50kW

    AC-On-Grid

    Rated AC Output Power

    50kW

    Max. AC Output Power

    50kVA

    Max. AC Current

    75A

    Rated AC Voltage

    400V 3L/N/PE

    Rated Grid Frequency/Range

    50/60Hz = 5Hz

    AC – Off – Grid

    Rated AC Voltage 400V 3L/N/PE
    Rated Grid Frequency/Range 50/60Hz
    Rated AC Output Power 50KW
    Max. AC Charge/Discharge Current 75A
    Switch Time ≤10ms



    Benefits

    • Life cycles
      >3500 cycles
    • Safety and sustainability
      reducing carbon footprint
    • Eliminate battery
      changes at each shift
    • Reduced costs &
      Savings on electricity bills
    • Fast charge &
      No “memory” effect
    • No hazardous fumes
      acid spills or watering
    • Remote troubleshooting &
      monitoring
    • Zero daily maintenance and
      no battery room required

    The right choice for more and more applications.

    • The 48 V 690 Ah battery has an excellent charging performance and high energy density.
    • F48690BD will only take a little charging time. Therefore, you can save a lot of time for workers.
    • Our lithium forklift battery is easier and more convenient to use and does not require maintenance to ensure its performance.
    • The cycle life of the 690 Ah forklift battery is up to 3500 times, contributing to cost savings.

    Comprehensive Safety

    Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.

    NACCI forklift charger supports communicating with the BMS of lithium batteries in real time, which significantly extends the charger lifespan.

    Intelligent Monitoring

    The intelligent display showcases current charging voltage, charging current, battery information, and set current in real time. It supports 12 language settings for easy reading and enables upgrading via USB.
