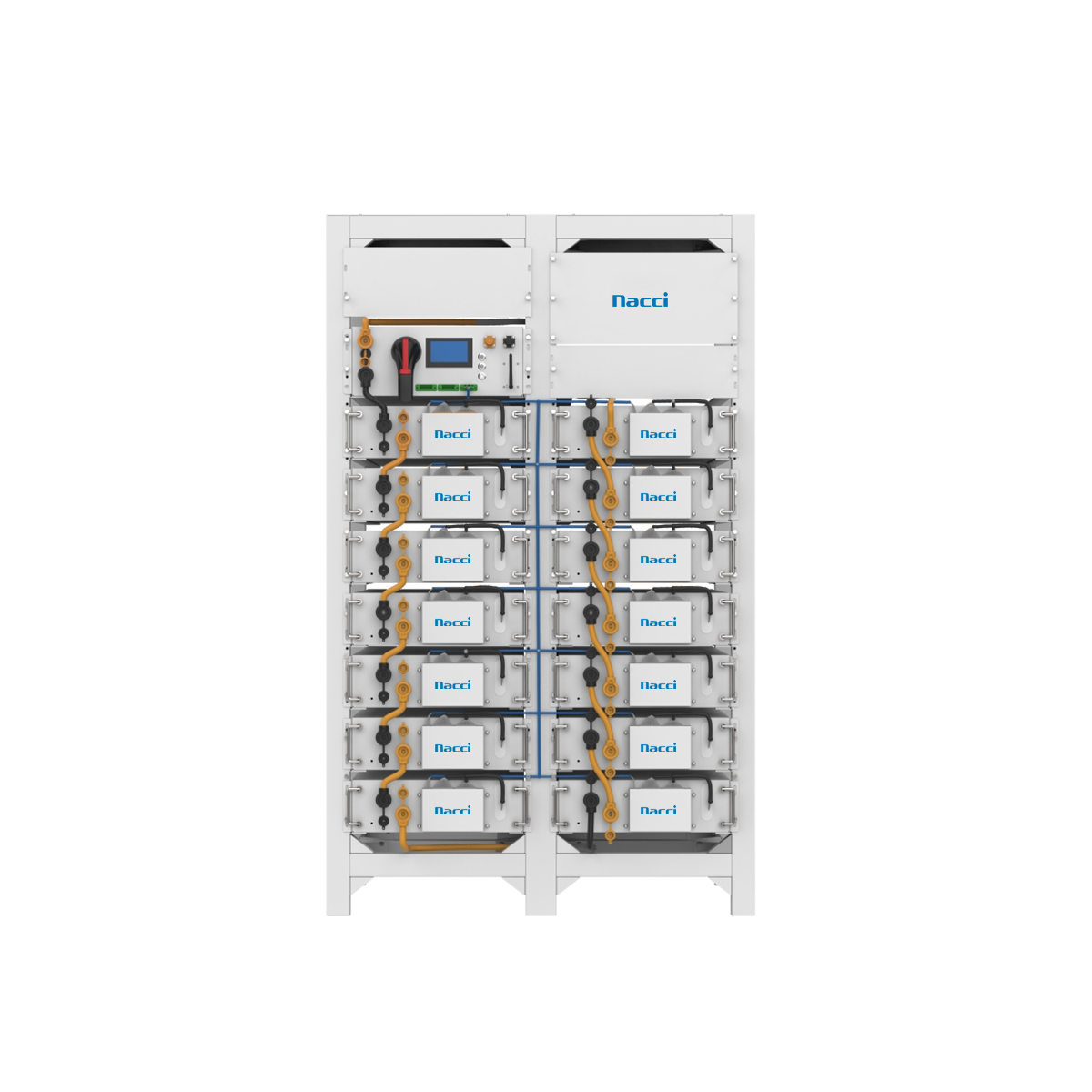

C& IESS Series-RPCI-HVC4 - Image 1

    C& IESS Series-RPCI-HVC4

    Technical Specifications
    • Safety & Reliability
    • Air conditioner in cabinet, fans & fire extinguishing device in battery module
    • LiFePO4 battery with higher safety & longer lifetime
    • Convenience
    • Standard 19 inch rack design for easy installation and maintenance
    • Supporting USB upgrade software
    • Flexibility
    • Standard modular design with 5.12kWh per battery modules
    • Flexible design from 4~14 battery modules in series
    • Three-layer architecture built in BMU+RBMS+SBMS for multiple protection
    • Touchable screen design for choosing different communication protocol
    SKU: NC-CI-5KHV-L-R1-UL
    Enquiry Now
    Whatsapp

    TECH & SPECS

    Module Energy

    5.12 kWh

    Module Nominal Voltage

    51.2V

    Module Capacity

    100A

    Battery Module Qty 1 in Series

    12

    14

    System Nominal Voltage (V)

    614.4V

    716.8V

    Charge Voltage (V)

    662.4V~691.2V

    772.8V~806.4V

    Cut-Off Discharge Voltage(V)

    537.6V

    627.2V

    Float Charge Voltage(V)

    652.8V

    761.6V

    System Energy

    61.44kWh

    71.68kWh

    Recommend Depth of Discharge

    80%

    Storage Temperature

    0~45°C

    Communication Port

    CAN/RS485

    Status Indicator

    RUN-Green Light;Alarm-Red Light

    IP Rating of Enclosure

    IP20

    Dimension (W/D/H, mm)

    1100*600*1600

    1100*600*1600

    Installation Location

    Rack/ Cabinet,Indoor



    Cycle Life

    ≥4000 cycles at 0.5C/0.5C ,25°C

    Warranty

    5 years



    Benefits

    • Life cycles
      >3500 cycles
    • Safety and sustainability
      reducing carbon footprint
    • Eliminate battery
      changes at each shift
    • Reduced costs &
      Savings on electricity bills
    • Fast charge &
      No “memory” effect
    • No hazardous fumes
      acid spills or watering
    • Remote troubleshooting &
      monitoring
    • Zero daily maintenance and
      no battery room required

    The right choice for more and more applications.

    • The 48 V 690 Ah battery has an excellent charging performance and high energy density.
    • F48690BD will only take a little charging time. Therefore, you can save a lot of time for workers.
    • Our lithium forklift battery is easier and more convenient to use and does not require maintenance to ensure its performance.
    • The cycle life of the 690 Ah forklift battery is up to 3500 times, contributing to cost savings.

    Comprehensive Safety

    Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.

    NACCI forklift charger supports communicating with the BMS of lithium batteries in real time, which significantly extends the charger lifespan.

    Intelligent Monitoring

    The intelligent display showcases current charging voltage, charging current, battery information, and set current in real time. It supports 12 language settings for easy reading and enables upgrading via USB.
