Nacci Solar Home Li-Ion Battery Energy Storage Cube - 48V Series (Wall-Mounted)
Nacci Solar Home Li-Ion Battery Energy Storage Cube - 48V Series (Wall-Mounted)

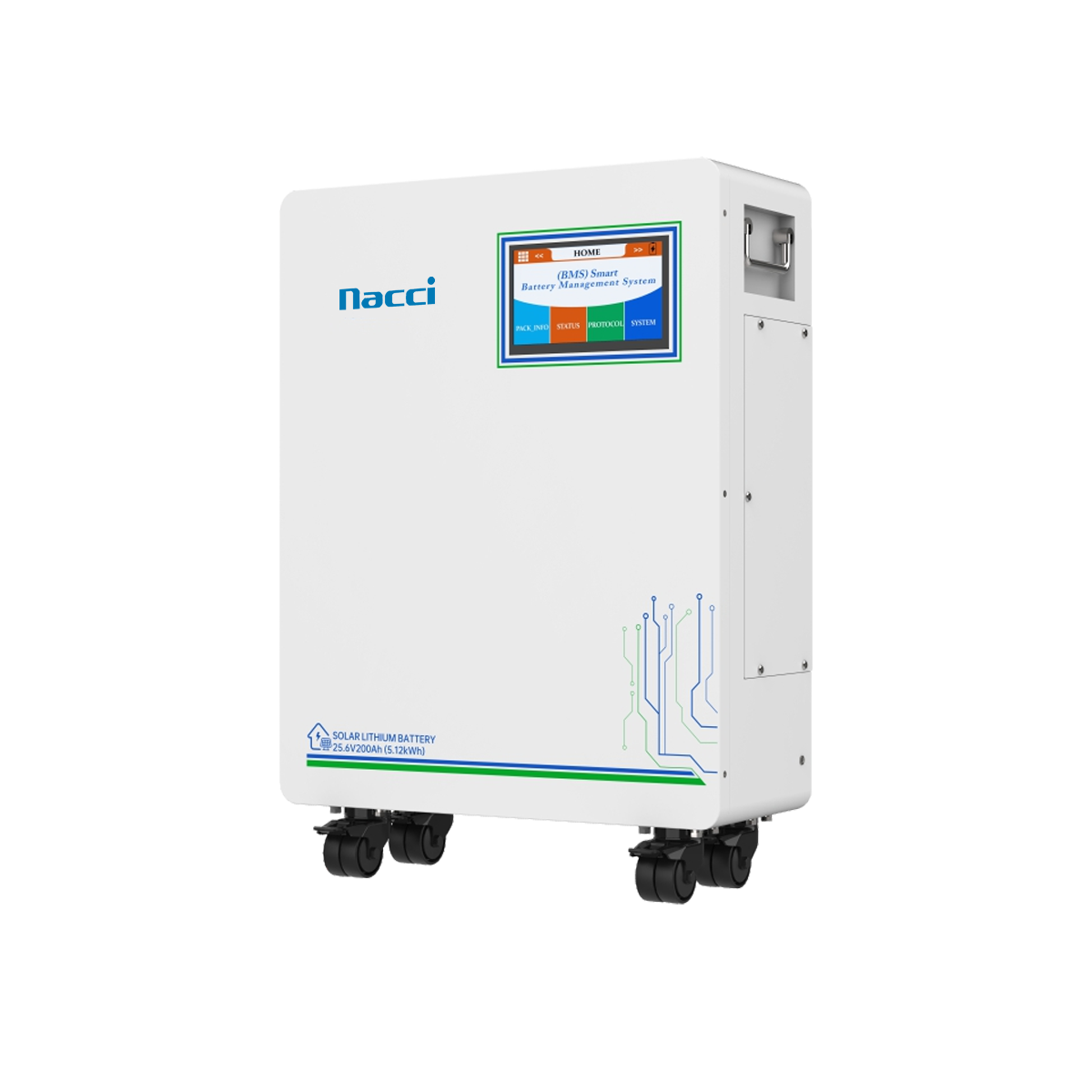

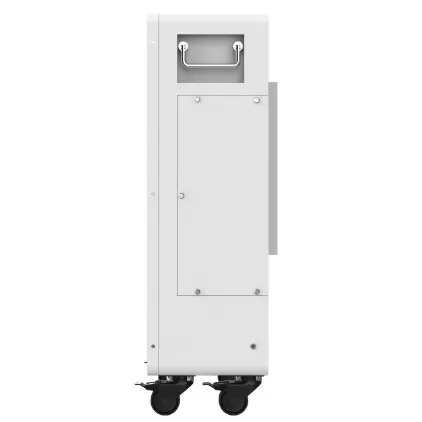

Household Wheel-Mounted Battery Lithium Battery Solar Energy Storage 5.12kWh/10.24kWh/14.34kWh - Image 1
Household Wheel-Mounted Battery Lithium Battery Solar Energy Storage 5.12kWh/10.24kWh/14.34kWh - Image 2
Household Wheel-Mounted Battery Lithium Battery Solar Energy Storage 5.12kWh/10.24kWh/14.34kWh - Image 3
    Household Wheel-Mounted Battery Lithium Battery Solar Energy Storage 5.12kWh/10.24kWh/14.34kWh
    Household Wheel-Mounted Battery Lithium Battery Solar Energy Storage 5.12kWh/10.24kWh/14.34kWh - Image 2
    Household Wheel-Mounted Battery Lithium Battery Solar Energy Storage 5.12kWh/10.24kWh/14.34kWh - Image 3

    Household Wheel-Mounted Battery Lithium Battery Solar Energy Storage 5.12kWh/10.24kWh/14.34kWh

    Technical Specifications
    • Advanced Safety: Reliable LFP cells with intelligent BMS for secure operation.
    • Long Lifespan: 6000+ cycles at 80% DoD, supported by a 5-year warranty.
    • Smart Monitoring: Optional LCD, Bluetooth, and WiFi for real-time tracking.
    • Wide Compatibility: Compatible with most inverters for easy integration.
    • Scalable Design: Expandable up to 16 units to meet growing energy needs.
    SKU: NC-HS-5K25-L-W1-UL
    Enquiry Now
    Whatsapp

    TECH & SPECS

    Rated Voltage 25.6V 51.2V 51.2V 51.2V 51.2V
    Rated Capacity 200Ah 100Ah 200Ah 280Ah 560Ah
    Rated Energy 5.12kWh 5.12kWh 10.24kWh 14.34kWh 28.67kWh
    Output Voltage Range 21.6V – 29.2V 43.2V – 58.4V 43.2V – 58.4V 43.2V – 58.4V 43.2V – 58.4V
    Charging Voltage 28.8 – 29.2V 57.6 – 58.4V 57.6 – 58.4V 57.6 – 58.4V 57.6 – 58.4V
    Cut – off Voltage 21.6V 43.2V 43.2V 43.2V 43.2V
    Max. Charging Current 150A 100A 150A 200A 200A
    Recommended Charging Current 50A 50A 50A 100A 100A
    Max.Discharging Current 150A 100A 150A 200A 200A
    Efficiency >98% >98% >98% >98% >98%
    Dimension LWH (mm) 600480200 600480200 750640200 700550255 850870255
    Weight (kg) ≈45 ≈45 ≈95 ≈117 ≈215
    Humidity 5% – 95% Relative humidity (all specs share)
    Charging Temperature 0°C – 55°C (all specs share)
    Discharging Temperature – 20°C – 60°C (all specs share)
    Storage Temperature – 10°C – 30°C (all specs share)
    Cycle Life >6000 times (0.2C, @25°C, 80%DOD) (all specs share)
    Design Life >10 years (all specs share)
    Operating Mode Touch Screen (all specs share)



    Benefits

    • Life cycles
      >3500 cycles
    • Safety and sustainability
      reducing carbon footprint
    • Eliminate battery
      changes at each shift
    • Reduced costs &
      Savings on electricity bills
    • Fast charge &
      No “memory” effect
    • No hazardous fumes
      acid spills or watering
    • Remote troubleshooting &
      monitoring
    • Zero daily maintenance and
      no battery room required

    The right choice for more and more applications.

    • The 48 V 690 Ah battery has an excellent charging performance and high energy density.
    • F48690BD will only take a little charging time. Therefore, you can save a lot of time for workers.
    • Our lithium forklift battery is easier and more convenient to use and does not require maintenance to ensure its performance.
    • The cycle life of the 690 Ah forklift battery is up to 3500 times, contributing to cost savings.

    Comprehensive Safety

    Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.

    NACCI forklift charger supports communicating with the BMS of lithium batteries in real time, which significantly extends the charger lifespan.

    Intelligent Monitoring

    The intelligent display showcases current charging voltage, charging current, battery information, and set current in real time. It supports 12 language settings for easy reading and enables upgrading via USB.
