Rated Voltage |
25.6V |
48V |
51.2V |
|
Rated Capacity |
100Ah |
100Ah |
100Ah |
|
Rated Energy |
2.56kWh |
4.80kWh |
5.12kWh |
|
Output Voltage Range |
21.6V-29.2V |
40.5V~54.75V |
43.2V~58.4V |
|
Charging Voltage |
28.8-29.2V |
54.0-54.75V |
57.6~58.4V |
|
Cut-off Voltage |
21.6V |
40.5V |
43.2V |
|
Max. Charging Current |
100A |
100A |
100A |
|
Recommended Charging Current |
50A |
50A |
50A |
|
Max.Discharging Current |
100A |
100A |
100A |
|
Efficiency |
>98% |
>98% |
>98% |
|
Dimension L*W*H (mm) |
480*370*165 |
510*475*150 |
510*475*150 |
|
Weight (kg ) |
~25 |
245 |
249 |
|
Humidity 5~95% Relative humidity |
|||
|
Charging Temperature 0°C~55°C |
|||
|
Discharging Temperature -20°C~60°C |
|||
|
Storage Temperature -10°C~30°C |
|||
|
Cycle Life >6000 times (0.2C, @25°C, 80%DOD) |
|||
|
Design Life |
>10 years |
||

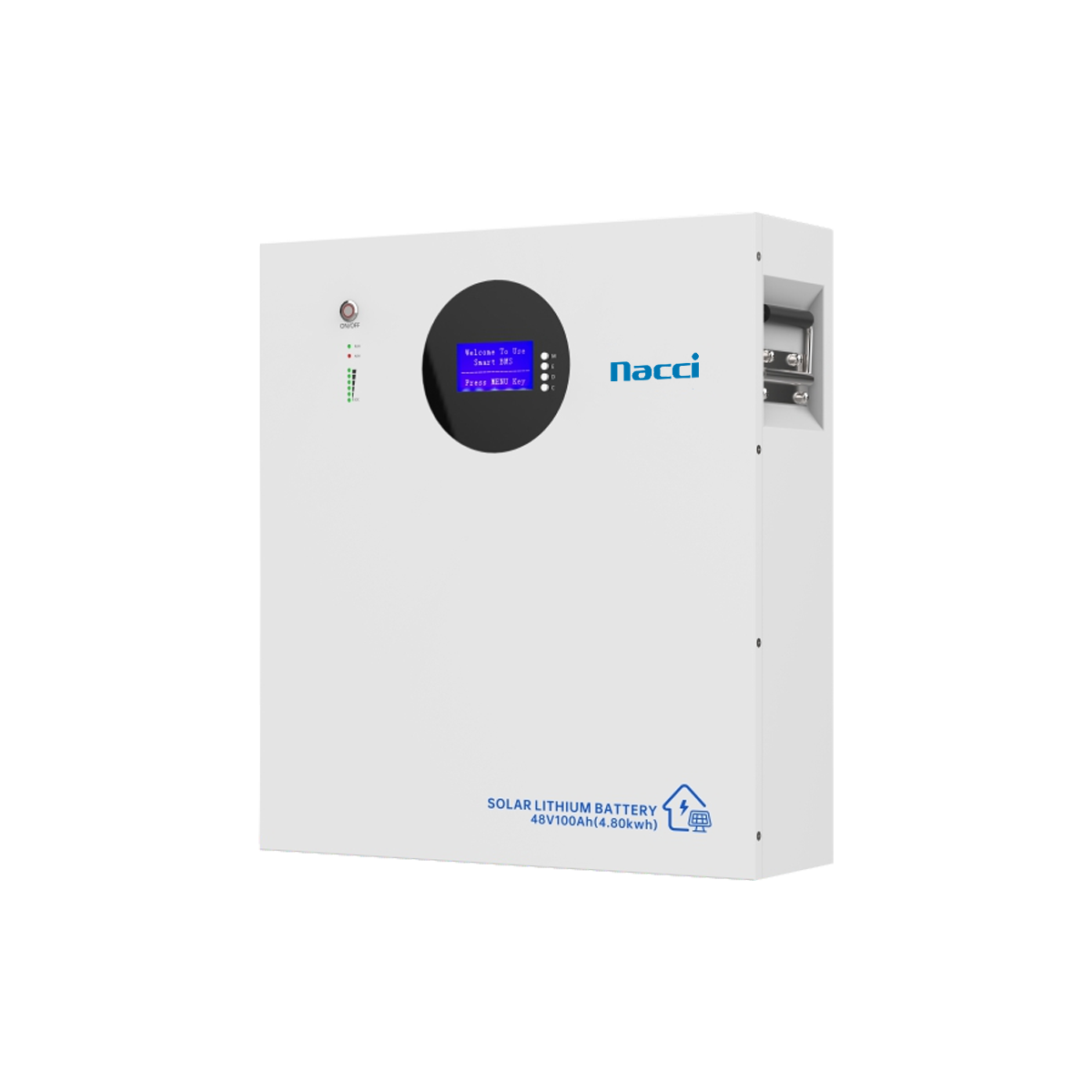

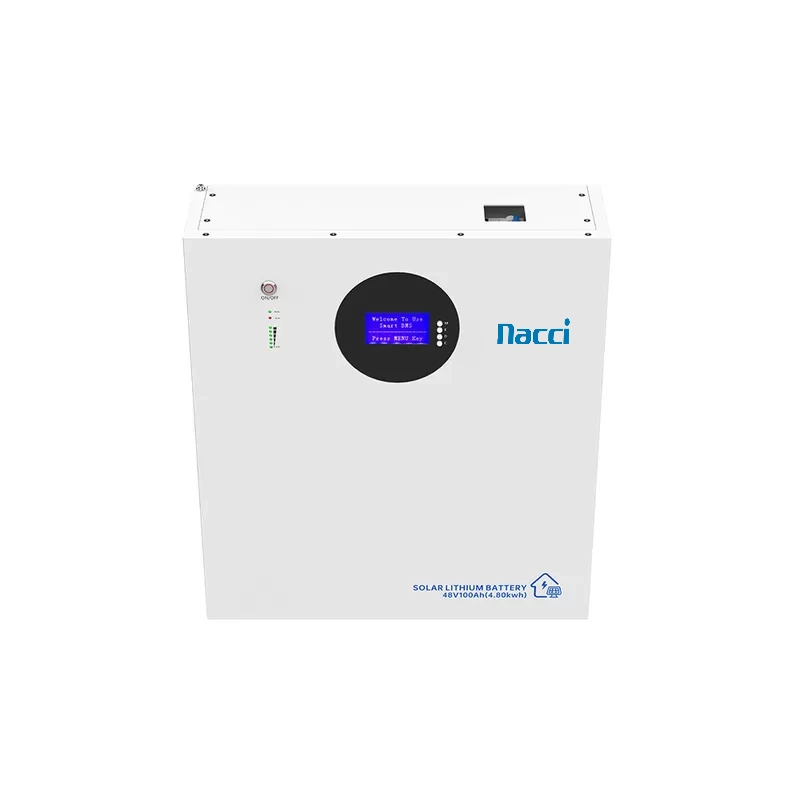

Nacci Battery 48V New Arrival Home Power Systems Lithium Ion Battery 25.6V/48V/51.2V Energy Storage Battery
Technical Specifications
- Enhanced Safety: LFP cells with advanced BMS for reliable, stable operation.
- Long-Lasting: 6000+ cycles at 80% DoD for extended performance.
- Easy Monitoring: Button-operated screen for straightforward system control.
- Broad Compatibility: Compatible with most inverters for easy integration.
- Scalable: Expandable up to 16 units to meet increasing energy demands.
TECH & SPECS
Benefits
-
Life cycles
>3500 cycles -
Safety and sustainability
reducing carbon footprint -
Eliminate battery
changes at each shift -
Reduced costs &
Savings on electricity bills
-
Fast charge &
No “memory” effect -
No hazardous fumes
acid spills or watering -
Remote troubleshooting &
monitoring -
Zero daily maintenance and
no battery room required
The right choice for more and more applications.
Comprehensive Safety
Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.
NACCI forklift charger supports communicating with the BMS of lithium batteries in real time, which significantly extends the charger lifespan.
Intelligent Monitoring
The intelligent display showcases current charging voltage, charging current, battery information, and set current in real time. It supports 12 language settings for easy reading and enables upgrading via USB.
