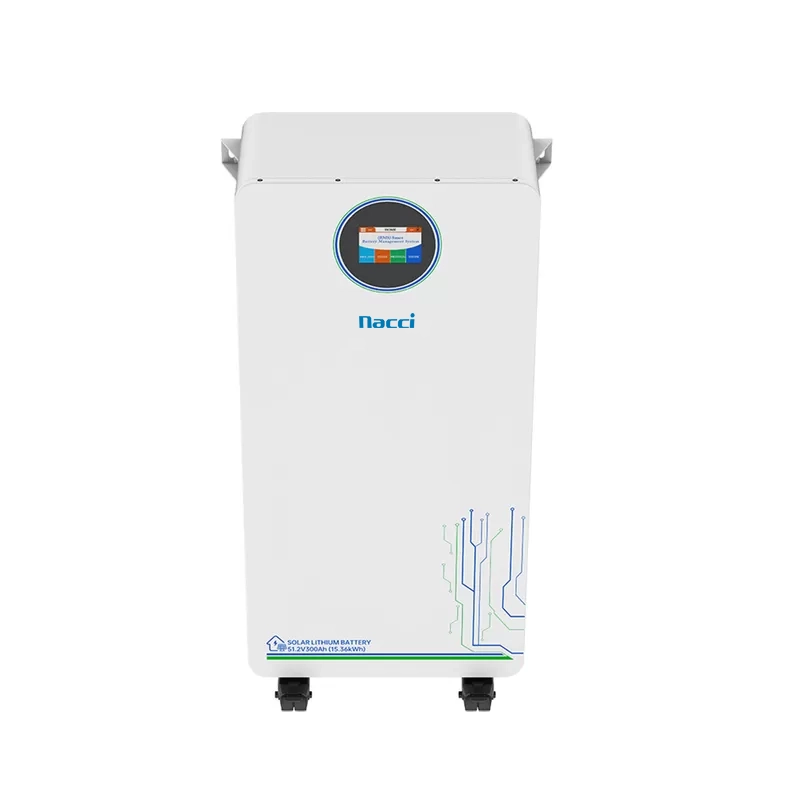

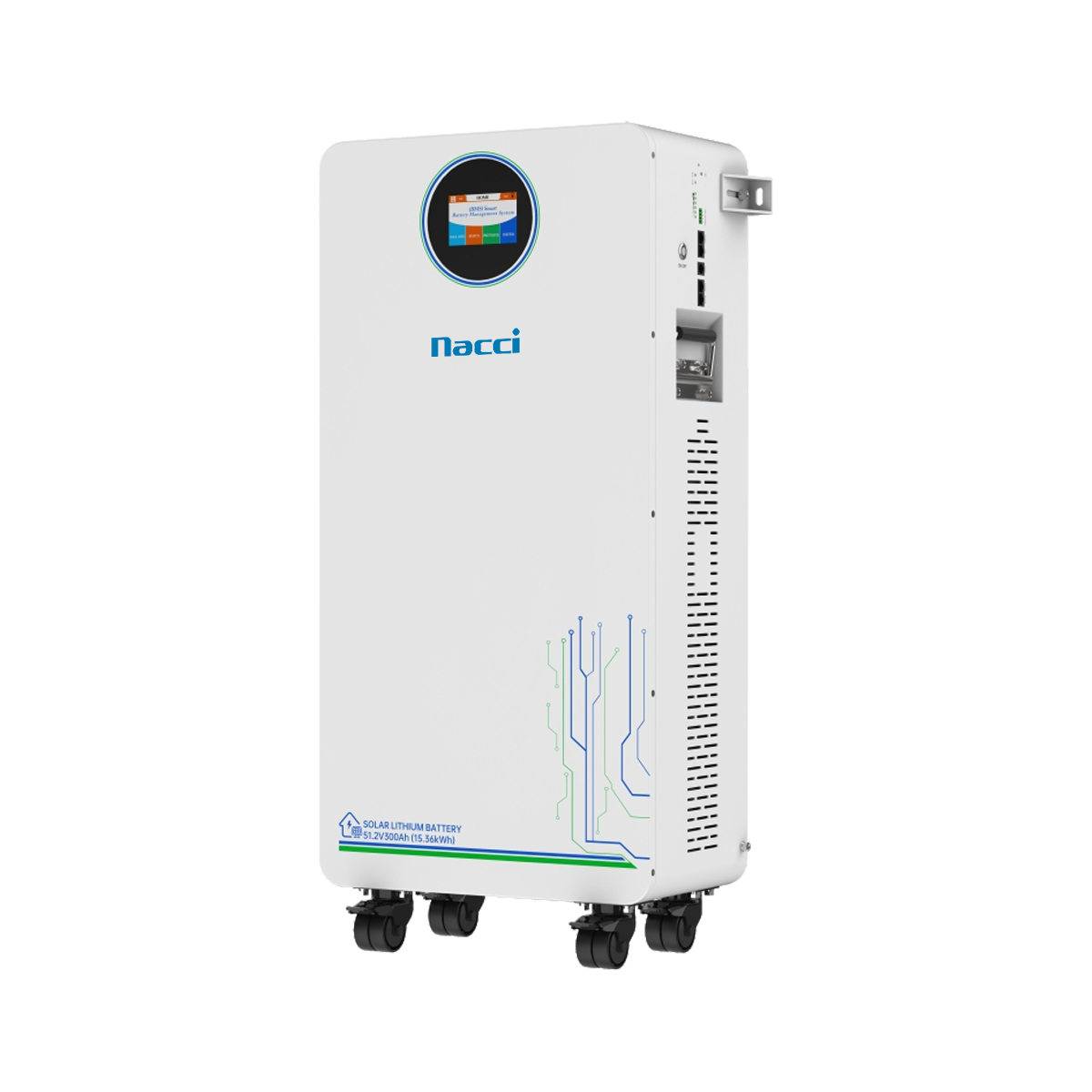

Nacci Battery 51.2V New Home Wheeled Power System Lithium Ion 280Ah/300Ah/314Ah/345Ah Energy Storage Battery
Technical Specifications
- Advanced Safety: Reliable LFP cells with intelligent BMS for secure operation.
- Long Lifespan: 6000+ cycles at 80% DoD, supported by a 5-year warranty.
- Smart Monitoring: Optional LCD, Bluetooth, and WiFi for real-time tracking.
- Wide Compatibility: Compatible with most inverters for easy integration.
- Scalable Design: Expandable up to 16 units to meet growing energy needs.
TECH & SPECS
|
Rated Voltage |
51.2V |
51.2V |
51.2V |
51.2V |
|
Rated Capacity |
280Ah |
306Ah |
314Ah |
350Ah |
|
Rated Energy |
14.34kWh |
15.67kWh |
16.08kWh |
17.92kWh |
|
Output Voltage Range |
43.2V~58.4V |
43.2V~58.4V |
43.2V~58.4V |
43.2V~58.4V |
|
Charging Voltage |
57.6-58.4V |
57.6~58.4V |
57.6~58.4V |
57.6~58.4V |
|
Cut-off Voltage |
43.2V |
43.2V |
43.2V |
43.2V |
|
Max. Charging Current |
150A |
150A |
150A |
150A |
|
Recommended Charging Current |
50A |
50A |
50A |
50A |
|
Max.Discharging Current |
150A |
150A |
150A |
150A |
|
Efficiency |
>98% |
>98% |
>98% |
>98% |
|
Dimension L*W*H ( mm) |
825*415*235 |
825*415*235 |
825*415*235 |
825*415*235 |
|
Weight (kg ) |
~110 |
22113 |
~115 |
2120 |
|
Humidity |
5%~95% Relative humidity |
|||
|
Charging Temperature 0°C~55°C |
||||
|
Discharging Temperature |
-20°C~60°C |
|||
|
Storage Temperature |
-10°C~30°C |
|||
|
Cycle Life |
>6000 times (0.2C, @25°C, 80%DOD) |
|||
|
Design Life |
>10 years |
|||
Benefits
-
>3500 cycles -
reducing carbon footprint -
changes at each shift -
Savings on electricity bills
-
No “memory” effect -
acid spills or watering -
monitoring -
no battery room required
The right choice for more and more applications.
Comprehensive Safety
Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.
NACCI forklift charger supports communicating with the BMS of lithium batteries in real time, which significantly extends the charger lifespan.
Intelligent Monitoring
The intelligent display showcases current charging voltage, charging current, battery information, and set current in real time. It supports 12 language settings for easy reading and enables upgrading via USB.
