Household Wheel-Mounted Battery Lithium Battery Solar Energy Storage 5.12kWh/10.24kWh/14.34kWh
Household Wheel-Mounted Battery Lithium Battery Solar Energy Storage 5.12kWh/10.24kWh/14.34kWh

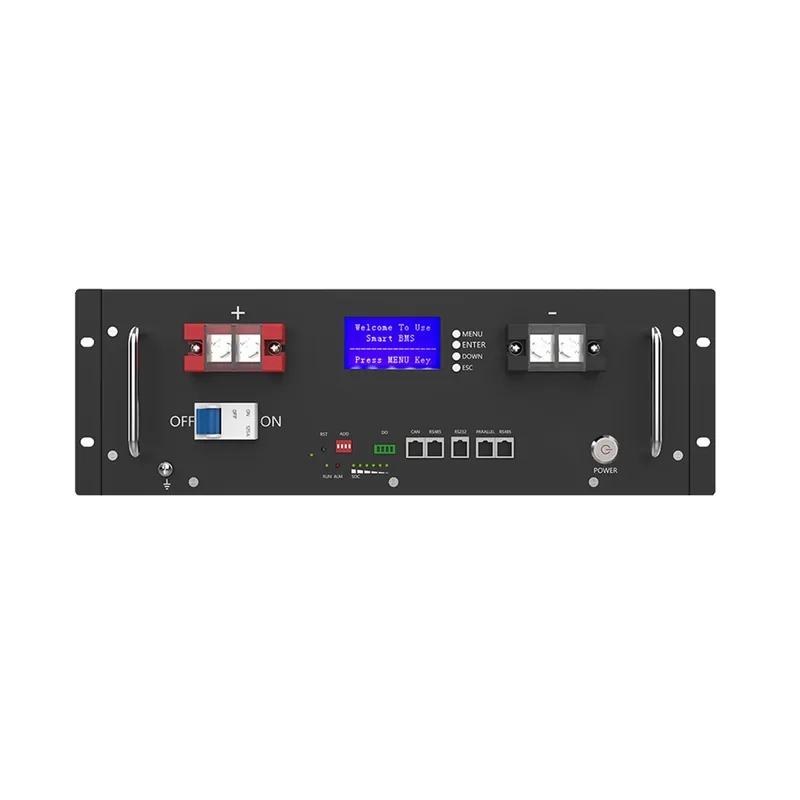

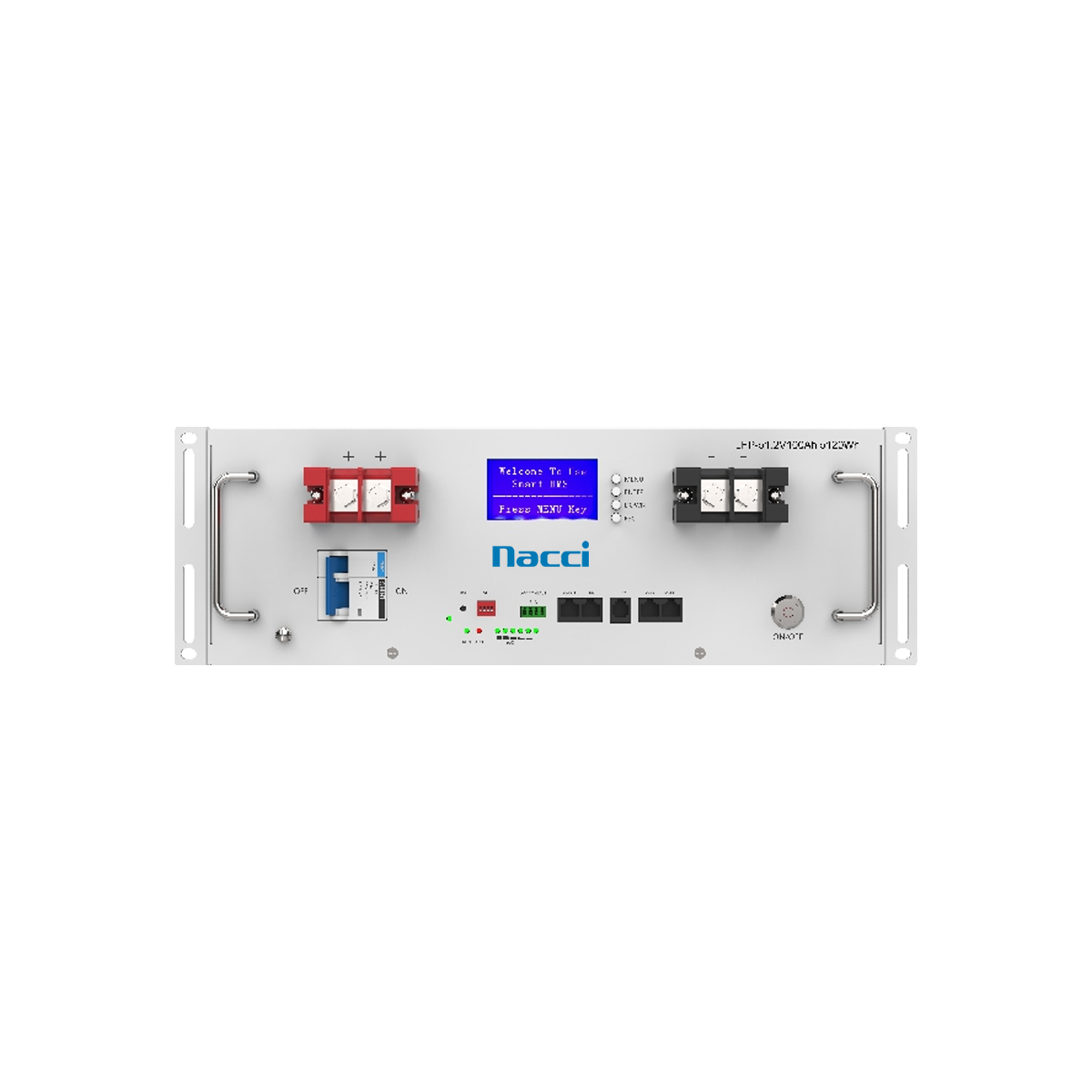

Nacci-Battery LifePo4 Battery 51.2V 5.12kWh/10kWh Lithium Battery Lithium Battery Pack for Solar Energy Storage System - Image 1
Nacci-Battery LifePo4 Battery 51.2V 5.12kWh/10kWh Lithium Battery Lithium Battery Pack for Solar Energy Storage System - Image 2
Nacci-Battery LifePo4 Battery 51.2V 5.12kWh/10kWh Lithium Battery Lithium Battery Pack for Solar Energy Storage System - Image 3
    Nacci-Battery LifePo4 Battery 51.2V 5.12kWh/10kWh Lithium Battery Lithium Battery Pack for Solar Energy Storage System
    Nacci-Battery LifePo4 Battery 51.2V 5.12kWh/10kWh Lithium Battery Lithium Battery Pack for Solar Energy Storage System - Image 2
    Nacci-Battery LifePo4 Battery 51.2V 5.12kWh/10kWh Lithium Battery Lithium Battery Pack for Solar Energy Storage System - Image 3

    Nacci-Battery LifePo4 Battery 51.2V 5.12kWh/10kWh Lithium Battery Lithium Battery Pack for Solar Energy Storage System

    Technical Specifications
    • High Safety Standards: Reliable LFP cells with built-in BMS for maximum protection.
    • Long Lifespan: Over 6000 cycles at 80% DoD, ensuring lasting performance.
    • Flexible Monitoring: Optional LCD display, Bluetooth, and WiFi for convenient tracking.
    • Wide Compatibility: Works with most inverters for easy system integration.
    • Expandable Capacity: Can be expanded in parallel to meet growing energy needs.
    SKU: NC-HS-5K51-L-W1-UL
    Enquiry Now
    Whatsapp

    TECH & SPECS

    Rated Voltage

    51.2V

    Rated Capacity

    100Ah

    200Ah

    Rated Energy

    5.12kWh

    10.24kWh

    Output Voltage Range

    43.2V~58.4V

    Charging Voltage

    57.6~58.4V

    Cut-off Voltage

    43.2V

    Max. Charging Current

    100A

    Recommended Charging Current

    50A

    Max.Discharging Current

    100A

    Efficiency

    >98%

    Dimension L*W*H (mm)

    480*442*155

    680*442*226

    Weight (kg )

    282

    Humidity

    5%~95% Relative humidity



    Charging Temperature

    0°C~55°C

    Discharging Temperature

    -20°C~60°C

    Storage Temperature

    -10°C~30°C



    Cycle Life

    >6000 times (0.2C, @25°C, 80%DOD)

    Design Lite

    >10 years




    Benefits

    • Life cycles
      >3500 cycles
    • Safety and sustainability
      reducing carbon footprint
    • Eliminate battery
      changes at each shift
    • Reduced costs &
      Savings on electricity bills
    • Fast charge &
      No “memory” effect
    • No hazardous fumes
      acid spills or watering
    • Remote troubleshooting &
      monitoring
    • Zero daily maintenance and
      no battery room required

    The right choice for more and more applications.

    • The 48 V 690 Ah battery has an excellent charging performance and high energy density.
    • F48690BD will only take a little charging time. Therefore, you can save a lot of time for workers.
    • Our lithium forklift battery is easier and more convenient to use and does not require maintenance to ensure its performance.
    • The cycle life of the 690 Ah forklift battery is up to 3500 times, contributing to cost savings.

    Comprehensive Safety

    Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.

    NACCI forklift charger supports communicating with the BMS of lithium batteries in real time, which significantly extends the charger lifespan.

    Intelligent Monitoring

    The intelligent display showcases current charging voltage, charging current, battery information, and set current in real time. It supports 12 language settings for easy reading and enables upgrading via USB.
