Rated Voltage |
25.6V 51.2V |
|||
|
Rated Capacity |
100Ah |
200Ah |
100Ah |
200Ah |
|
Rated Energy |
2.56kWh 5.12kWh |
5.12kWh 10.24kWh |
||
|
Output Voltage Range |
21.6V~29.2V 43.2V~58.4V |
|||
|
Charging Voltage |
28.8~29.2V 57.6-58.4V |
|||
|
Cut-off Voltage |
21.6V 43.2V |
|||
|
Max.Charging Current |
100A 100A |
|||
|
Recommended Charging Current |
50A 50A |
|||
|
Max.Discharging Current |
100A 100A |
|||
|
Efficiency |
>98% |
|||
|
Dimension L*W*H ( mm ) |
434*384*142 650*384*142 650*384*142 680*415*235 |
|||
|
Weight ( kg ) |
~25 |
~45 |
=45 |
~86 |
|
Humidity |
5%~95% Relative humidity |
|||
|
Charging Temperature |
0°C~55°C |
|||
|
Discharging Temperature |
-20°C~60°C |
|||
|
Storage Temperature |
-10°C~30°C |
|||
|
Cycle Life |
>6000 times (0.2C, @25°C, 80%DOD) |
|||
|
Design Life |
>10 years |
|||
|
Operating Mode |
Touch Screen |
|||

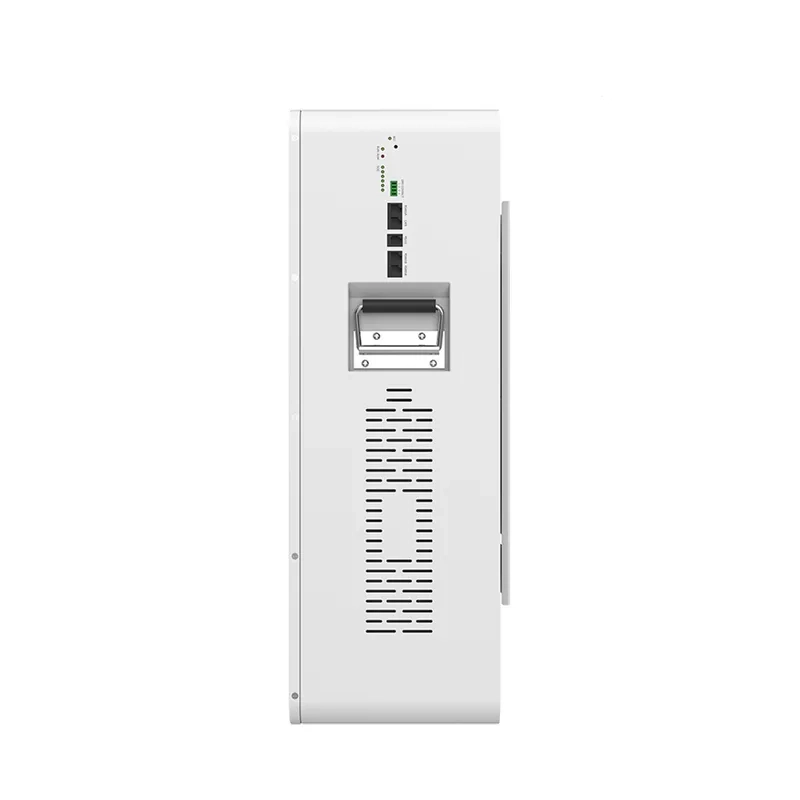

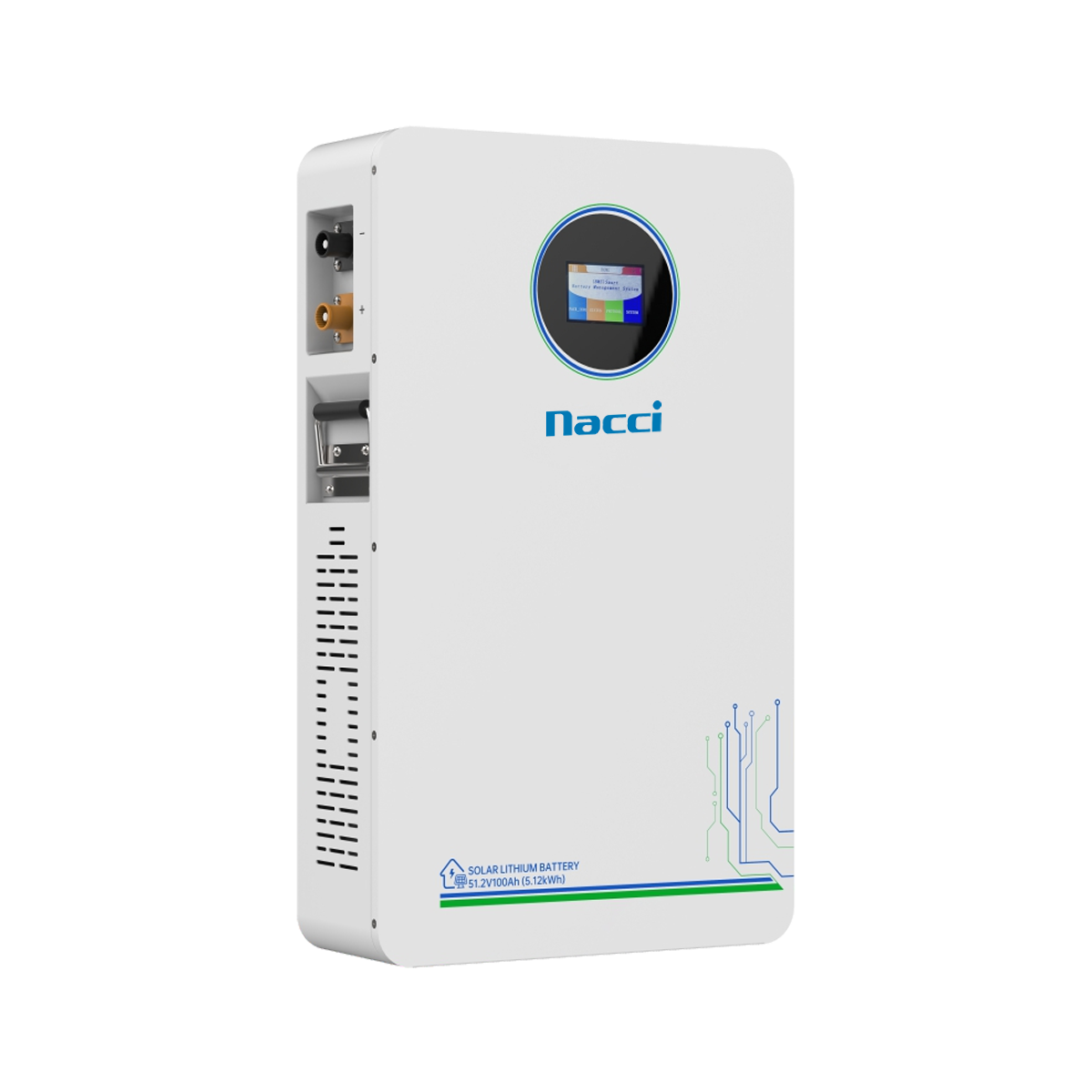

NACCI-Battery Solar Stackable Residential Home Use Lifepo4 Lithium Energy Storage 25.6V/51.2V 100Ah/200Ah Lifepo4 Battery Containers Cell
Technical Specifications
- High Safety Standards: Reliable LFP cells with built-in BMS for maximum protection.
- Long Lifespan: Over 6000 cycles at 80% DoD, ensuring lasting performance.
- Flexible Monitoring: Optional LCD display, Bluetooth, and WiFi for convenient tracking.
- Wide Compatibility: Works with most inverters for easy system integration.
- Expandable Capacity: Can be expanded in parallel to meet growing energy needs.
TECH & SPECS
Benefits
-
Life cycles
>3500 cycles -
Safety and sustainability
reducing carbon footprint -
Eliminate battery
changes at each shift -
Reduced costs &
Savings on electricity bills
-
Fast charge &
No “memory” effect -
No hazardous fumes
acid spills or watering -
Remote troubleshooting &
monitoring -
Zero daily maintenance and
no battery room required
The right choice for more and more applications.
Comprehensive Safety
Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.
NACCI forklift charger supports communicating with the BMS of lithium batteries in real time, which significantly extends the charger lifespan.
Intelligent Monitoring
The intelligent display showcases current charging voltage, charging current, battery information, and set current in real time. It supports 12 language settings for easy reading and enables upgrading via USB.
