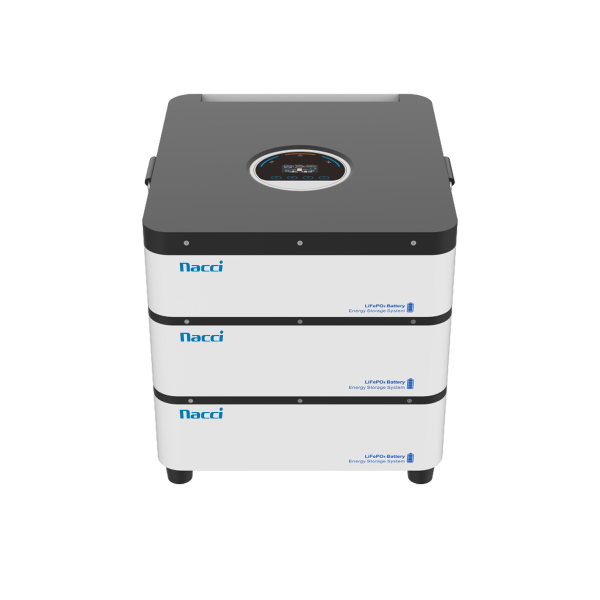

Nacci Battery 500V 6kW Home Energy Storage System Custom Simple Eco-friendly Stackable Can Communication
Nacci Battery 500V 6kW Home Energy Storage System Custom Simple Eco-friendly Stackable Can Communication

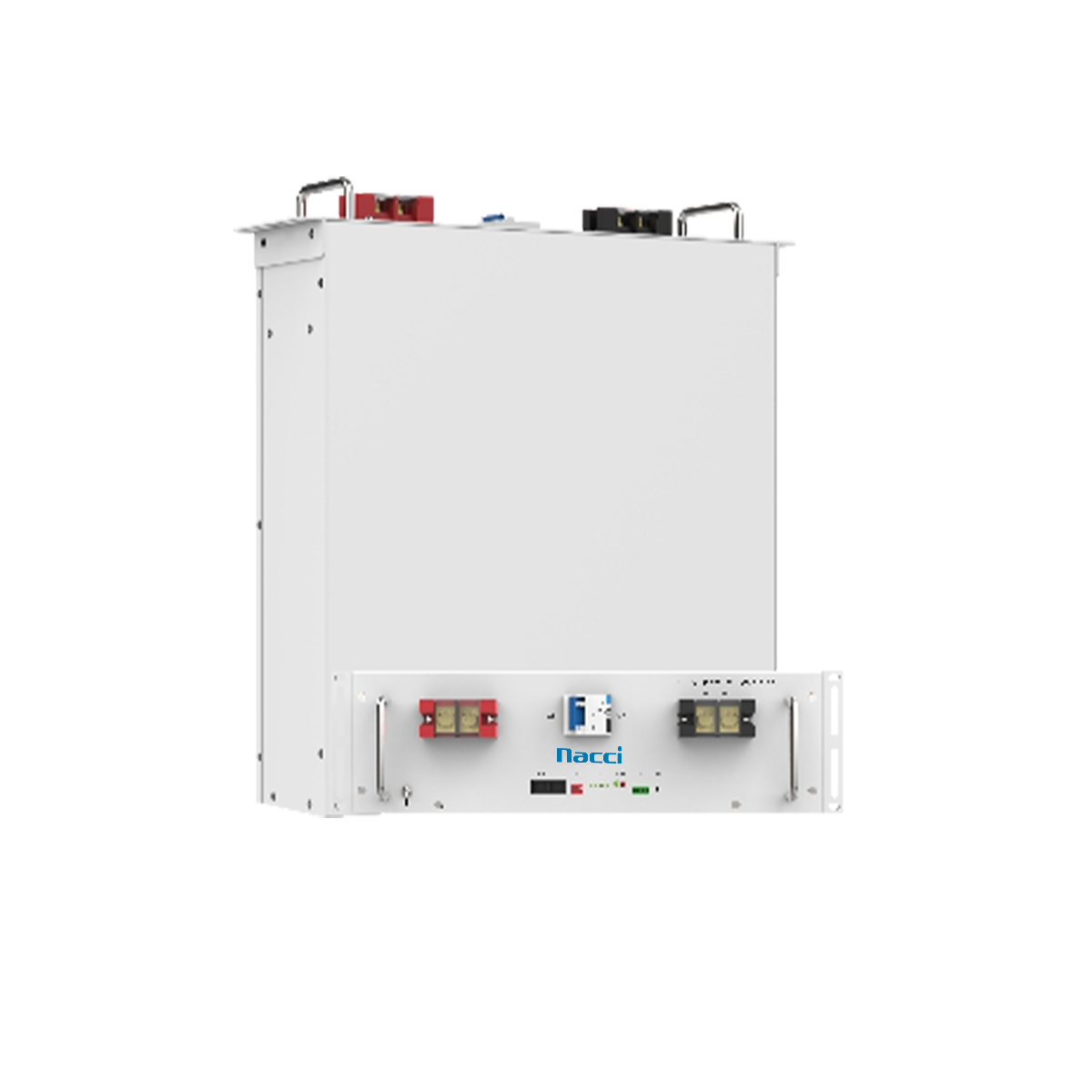

Telecom Battery Series-RPTB-RM1 - Image 1

    Telecom Battery Series-RPTB-RM1

    Technical Specifications
    • LFP (lithium iron phosphate) cell to ensure the highest safety
    • Built-In BMS protects the cell such as temperature, current, voltage, SoC, SoH
    • Extra long cycle life times with 6000 cycles with 80% DoD
    • Compatible with most of the available inverters
    • Possibility of parallel connection with up to 16 pieces
    SKU: NC-PB-2KW48-L-W1-UL
    Enquiry Now
    Whatsapp

    TECH & SPECS

    Rated Voltage

    48V

    Rated Capacity

    50Ah

    100Ah

    150Ah

    200Ah

    Rated Energy

    2.40kWh

    4.80kWh

    7.20kWh

    9.60kWh

    Output Voltage Range

    42.0V~54.0V

    Charging Voltage

    52.5~53.5V

    Cut-off Voltage

    40.5V

    Max. Charging Current

    50A

    100A

    100A

    100A

    Recommended Charging Current

    25A

    50A

    50A

    50A

    Max.Discharging Current

    50A

    100A

    100A

    100A

    Efficiency



    Dimension L*W*H ( mm)



    480*442M135 480*442+155 500*442*200 680*442*226



    Weight (kg)

    ：28

    ~45

    ：58

    ~86

    Humidity

    5%~95% Relative humidity

    Charging Temperature



    0°C~55°C



    Discharging Temperature

    -10°C~60°C

    Storage Temperature

    -10°C~30°C

    Cycle Life

    > times times @25°C, 80%DOD 80%DOD)



    Benefits

    • Life cycles
      >3500 cycles
    • Safety and sustainability
      reducing carbon footprint
    • Eliminate battery
      changes at each shift
    • Reduced costs &
      Savings on electricity bills
    • Fast charge &
      No “memory” effect
    • No hazardous fumes
      acid spills or watering
    • Remote troubleshooting &
      monitoring
    • Zero daily maintenance and
      no battery room required

    The right choice for more and more applications.

    • The 48 V 690 Ah battery has an excellent charging performance and high energy density.
    • F48690BD will only take a little charging time. Therefore, you can save a lot of time for workers.
    • Our lithium forklift battery is easier and more convenient to use and does not require maintenance to ensure its performance.
    • The cycle life of the 690 Ah forklift battery is up to 3500 times, contributing to cost savings.

    Comprehensive Safety

    Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.

    NACCI forklift charger supports communicating with the BMS of lithium batteries in real time, which significantly extends the charger lifespan.

    Intelligent Monitoring

    The intelligent display showcases current charging voltage, charging current, battery information, and set current in real time. It supports 12 language settings for easy reading and enables upgrading via USB.
